Product Details
Place of Origin: China
Brand Name: goodsense
Model Number: FB30LE
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bare packaging
Delivery Time: 30-40work days
Payment Terms: T/T
Rated Capacity: |
3000kg |
Load Centre: |
500mm |
Place Of Origin: |
China |
Brand Name: |
Goodsense |
Name: |
Forklift |
Condition: |
New |
Energy Supply: |
Reference Introduction |
Advantage: |
Small Vibration And Noise |
Rated Capacity: |
3000kg |
Load Centre: |
500mm |
Place Of Origin: |
China |
Brand Name: |
Goodsense |
Name: |
Forklift |
Condition: |
New |
Energy Supply: |
Reference Introduction |
Advantage: |
Small Vibration And Noise |

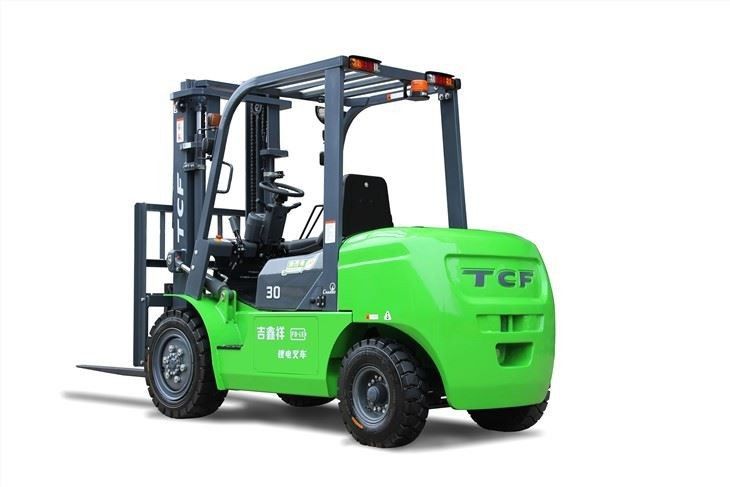

GOODSENSE LE series 3-3.8t oil-to-electric forklift is a new energy oil-to-electric product developed on the platform of TCF series internal combustion forklift, applying the shape, chassis and gantry system of the internal combustion vehicle, and integrating the last lithium battery control technology.
Efficient Drive System
H-type compact structure drive unit,low center gravity, more reasonable layout, and more stable driving.
New type of maintenance-free AC motor, high transmission efficiency, lower maintenance and field cost.
Flexible Steering System
Adopt dynamic load-sensing priority steering system to make steering response faster and driving more stable.
Frame and steering axle are connected by suspension. Special rubber pads effectively buffer shock absorption.
Comfortable Operation Space
The ergonmic all-round operation space layout of 3 Ton Oil to Electric Lithium Battery Forklift is uptimized to create a good, comfortable and cionvenient driving experience for the operator.
■Front hydraulic joystick ■Inclination adjustable small diameter steering wheel
■Sawtooth anti-skid pedals ■Wide field of view mast design
| Characteristic | ||
| Model | FB30LE | |
| Power Type | Lithium Battery (Electric) | |
| Rated Capacity | kg | 3000 |
| Load Centre | mm | 500 |
| Service weight | kg | 4000 |
| Tyre & Chassis | ||
| Tyre Type(Front/Rear) | Pneumatic | |
| Wheel number X = drive wheel (Front/Rear) | 2X/2 | |
| Tyre Size(Front) | 28×9-15-14PR | |
| Tyre Size(Rear) | 6.50-10-10PR | |
| Front Tread | mm | 1000 |
| Rear Tread | mm | 960 |
| Wheelbase | mm | 1800 |
| Size | ||
| Fork Size(L×W×T) | mm | 1070×125×45 |
| Mast Tlile Angle(F/R) | deg | 6/12 |
| Lift Height | mm | 3000 |
| Mast Lowered Height | mm | 2115 |
| Free Lift Height | mm | 125 |
| Mast Ectended Height | mm | 4175 |
| Backrest Height | mm | 1140 |
| Fork Adjust Distence | mm | 250-1100 |
| Length to Face of Fork | mm | 2781 |
| Overall Width | mm | 1230 |
| Overhead Guard Height | mm | 2150 |
| Distance From Roof to Seat | mm | 1010 |
| Front Overhang | mm | 481 |
| Rear Overhang | mm | 500 |
| Turning Radius(outside) | mm | 2540 |
| Ground Clearance(Bottom of mast) | mm | 140 |
| Min.intersecting aisel | mm | 2600 |
| Min.right angle stacking aisel width | mm | 4280 |
