Product Details
Place of Origin: China
Brand Name: Goodsense
Model Number: FG25
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bare packaging
Delivery Time: 30-40work days
Payment Terms: T/T
Model Number: |
FG25 FG30 FG35 |
Rated Loading Capacity: |
2.5 TON 3 Ton 3.5 TON |
Core Components: |
Pump, Gearbox, Engine |
Weight (KG): |
4300 Kg |
Fork Length: |
1070mm |
Fork Width: |
125mm |
Overall Dimensions: |
1070*125*45mm |
Rated Capacity: |
3000kg |
Place Of Origin: |
China |
Brand Name: |
Goodsense |
Name: |
Forklift |
Condition: |
New |
Energy Supply: |
Reference Introduction |
Advantage: |
Small Vibration And Noise |
Model Number: |
FG25 FG30 FG35 |
Rated Loading Capacity: |
2.5 TON 3 Ton 3.5 TON |
Core Components: |
Pump, Gearbox, Engine |
Weight (KG): |
4300 Kg |
Fork Length: |
1070mm |
Fork Width: |
125mm |
Overall Dimensions: |
1070*125*45mm |
Rated Capacity: |
3000kg |
Place Of Origin: |
China |
Brand Name: |
Goodsense |
Name: |
Forklift |
Condition: |
New |
Energy Supply: |
Reference Introduction |
Advantage: |
Small Vibration And Noise |
PRODUCT DETAILS

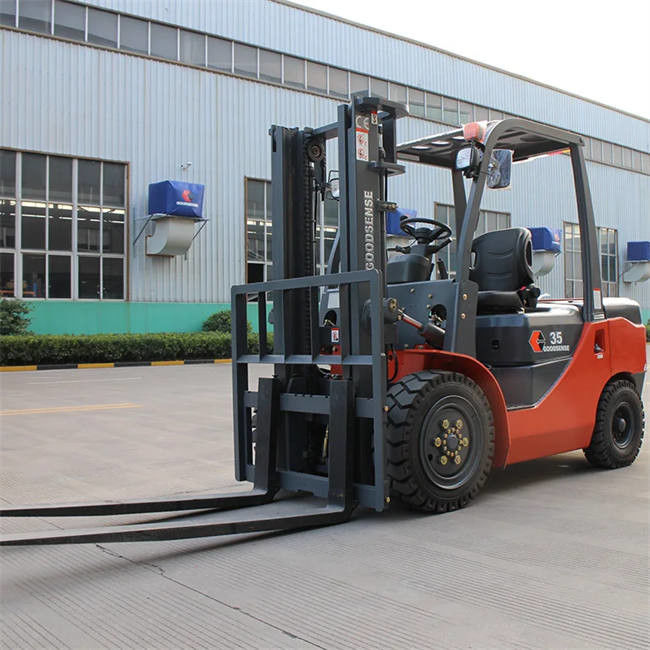

GOODSENSE 3 ton LPG forklift trucks bring power, dependability, productive forces and a low cost of property to operations across industry.
With a conventional automotive layout, GOODSENSE 3 ton LPG forklift trucks are easy to use, simple to service and come with a range of standard characteristics and added choices.
With lift heights up to 6000mm, lift capacities from 1,500kg up to 3,000kg, empty load travel speeds up to 20km/h and excellent mobility, control and visibility, GOODSENSE 3 ton LPG forklift trucks adapt to the needs of various businesses such as constructors, retailers, manufacturers, logistics, warehousing and much more.
 |
|
 |
 |
| Model | FG20 | FG25 | FG30 | FG35 | |||
| Power Type | LPG | LPG | LPG & Gasoline | LPG & Gasoline | |||
| Rated Capacity | kg | 2000 | 2500 | 3000 | 3500 | ||
| Load Centre | mm | 500 | 500 | 500 | 500 | ||
| Lift Height | mm | 3000 | 3000 | 3000 | 3000 | ||
| Fork Size | L×W×T | mm | 1070×120×40 | 1070×120×40 | 1070×125×45 | 1070×125×50 | |
| Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° | |
| Front Overhang (Wheel center to fork face) | mm | 445 | 445 | 480 | 485 | ||
| Ground Clearance(Bottom of mast) | mm | 80 | 80 | 140 | 140 | ||
| Overall Dimension | Length to face of fork(Without fork) | mm | 2355 | 2355 | 2730 | 2775 | |
| Overall Width | mm | 1110 | 1110 | 1225 | 1225 | ||
| Mast Lowered Height | mm | 2070 | 2070 | 2115 | 2115 | ||
| Mast Extended Height(With backrest) | mm | 4070 | 4070 | 4150 | 4150 | ||
| Overhead Guard Height | mm | 2080 | 2080 | 2090 | 2090 | ||
| Turning Radius (outside) | mm | 2110 | 2110 | 2440 | 2480 | ||
| Speed | Travel (Full load) | km/h | 17 | 17 | 20 | 20 | |
| Lifting (Full load) | mm/s | 530 | 530 | 510 | 440 | ||
| Max.Gradeability (No load/Full load) | % | 20 | 20 | 20 | 20 | ||
| Tire | Front | mm | 21*7*15 | 21*7*15 | 28×9-15-12PR | 28×9-15-12PR | |
| Rear | mm | 16(1/4)*6*11(1/4) | 16(1/4)*6*11(1/4) | 6.50-10-10PR | 6.50-10-10PR | ||
| Wheelbase | mm | 1400 | 1400 | 1700 | 1700 | ||
| Service weight | kg | 3445 | 3655 | 4300 | 4500 | ||
| Battery | Voltage/Capacity | V/Ah | 12/80 | 12/80 | 12/80 | 12/80 | |
| Engine | Model | K25EPA | K25 | ||||
| Manufacture | GCT (NISSAN) | GCT (NISSAN) | |||||
| Rated output/r.p.m. | kw | 42/2700 | 35.6/2100 | ||||
| Rated torque/r.p.m. | N·m | 185/1350 | 176.5/1600 | ||||
| No.of Cylinder | 4 | 4 | |||||
| Bore×Stroke | mm | 89×100 | 89×100 | ||||
| Displacement | cc | 2488 | 2488 | ||||
| Fuel Tank Capacity | L | 55 | 60 | 60 | |||
| Transmission | Type | Hydraulic | Hydraulic | Hydraulic | |||
| Stage | FWD/RVS | 1/1 | 1/1 | 1/1 | |||
