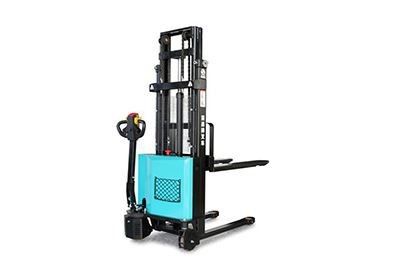

Adjustability All Around Pedestrian Electric Pallet Stacker With Multifunction Intelligent Handle

Pedestrian Electric Lift Stacker Manufacturers FBD10J/ FBD12J/ FBD12J-L/ FBD15J/ FBD15J-L

1000/ 1200/ 1500kg, lifting height: 2500-3000mm, Fork size: 685*1150mm, 24V 80Ah

Light Duty Economical Intelligent Electric Stacker

Certification CE certificate

ADVANTAGES OF OUR PRODUCT FEATURES

Pedestrian pallet stacker with Multifunction Intelligent Handle, a ideal and budget affordable model to replace Semi-Electric Stacker and manual stacker in the market, to bring a high efficiency and easiest pallet stacking.

◆ Multi-Function Intelligent handle.

◆ Long tiller arm design, easy steering comfortable operation

◆ Light-sensor inching switch ---to replace traditional mechanical switch, with long working life and steady quality

◆ Well designed wires display, ensuring long working life and low failure rate

◆ Rabbit and turtle speed--quick and slow traveling modes switching for safer operation

◆ Up-right drive, easier operating in narrow aisles

◆ Metal cover for durable life time.

PRODUCT DESCRIPTION

SPECIFICATION

Detailed parameters of each model

UNIQUE SALES POINTS

Our products have unique and excellent capabilities

1. Multifunction Intelligent Handle

Unique in the market, quick error detect, easier service, save service time,save labor cost.

I.Vehicle operation status display

- Up/down/forward/backward

- Working hour/battery capacity display

II.Quick Error detecting

- Error code display

III.All maintenance information visualized

- Quick error point locate.

2. Up-right Drive Function Std

Truck can be operate when handle in Up-right position.

Easy active access, suitable for narrow aisle working condition.

Active Method:

1) Belly Button Pressed+ Forward Knob Hold;

2) Turn on Key Switch;

3) Pull up Emergency Stop button for active Up-drive mode.

3. Turtle Speed mode STD

Turtle and Rabbit Speed shift by button press.

4. Long Tiller Arm handle design

Easy steering and comfortable operation.

5. Metal Cover

One Piece Metal Rear Cover, durable life time built.

6. Well organized wiring harness, almost no wear, bring sustained life

7. Light senor interlock switch, responsible quality

8. On-board Charger

Easy charge access

OPERATION STATUS DISPLAY

Showing in-time working status, GREEN indicates the function of pedestrian pallet stacker is in active
